    Pinhole detection in aluminium foil

    Arck Sensor|Quality control|Pinhole detection in aluminium foil
    Pinhole Detection
    Pinhole Detection Aluminium Foil
    Pinhole Detection Aluminium Foil2
    Pinhole detection in aluminium foil 2

    Aluminium foil is a key material for the packaging industries (food, beverage and pharmaceutical), it is also used in many technical applications, mainly heat exchangers for car and trucks, and for insulation and cable wrap. Aluminium foil is a very thin aluminium sheet with a gauge below 200 µm, down to 4 µm. It provides a complete barrier to light, gas, moisture and bacteria.

    As the thickness of aluminium foil decreases, the number of pinholes in the aluminium foil characteristically increases. Since pinhole is associated with package safety, its size and number is an important scale to measure production quality. For the very thinnest gauges (6-70µm), the foil is doubled to avoid breakage because of the extreme thinness in the cold rolling mill, then rolled to the desired gauge and separated into large reels; to be later slitted to required widths.

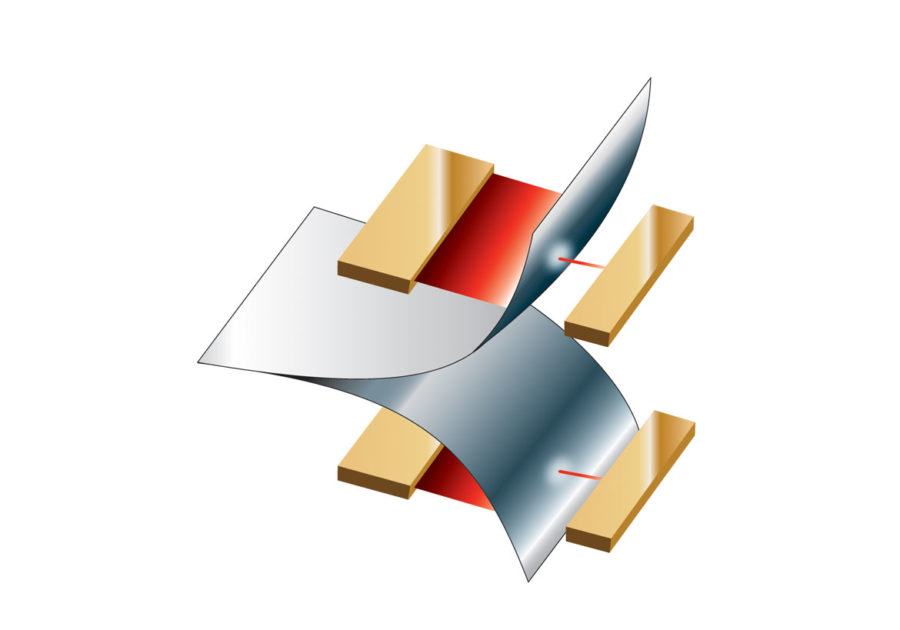

    CEPHEE®AS is an automatic detector especially designed for double-rolled foils, testing 100% of the two foils at the exit of the separator.

    Our pinhole detector of the latest generation CEPHEE® V is a cutting-edge detector able to analyse 100% of the single-rolled foil at a high speed.
    The pinhole is detected, classified by size and positioned in X, Y along the foil.

    Your benefits

    Our commitment

    Decisive advantages for securing your position vis-à-vis your clients and beyond your competitors

    • Productivity: no speed reduction for quality control, improved real-time process control
    • Availability and cost-saving: identification of preventive maintenance, reduced rejects and customer claims
    • Quality: certified quality with maximum size of pinhole, density and line pinhole; customer satisfaction
    • Efficiency and accuracy: early detection before value-adding processes, inspection of 100% of the strip
    • Reliability and predictability: special design and robustness for severe environments, insensitivity to ambient light

    Accurate and Robust

    The sensor technology, its specific design and ruggedness are approved for severe environments; ambient light immunity.

    Certified by Arck Sensor

    “We are committed to offering robust and accurate products of the highest quality.”
    Marc Brouant, President
